Every unit you produce ends up on a pallet. It's the last stage you control before your product moves into storage, transit, and the hands of your customer. What happens here determines whether the quality you've built upstream actually arrives.

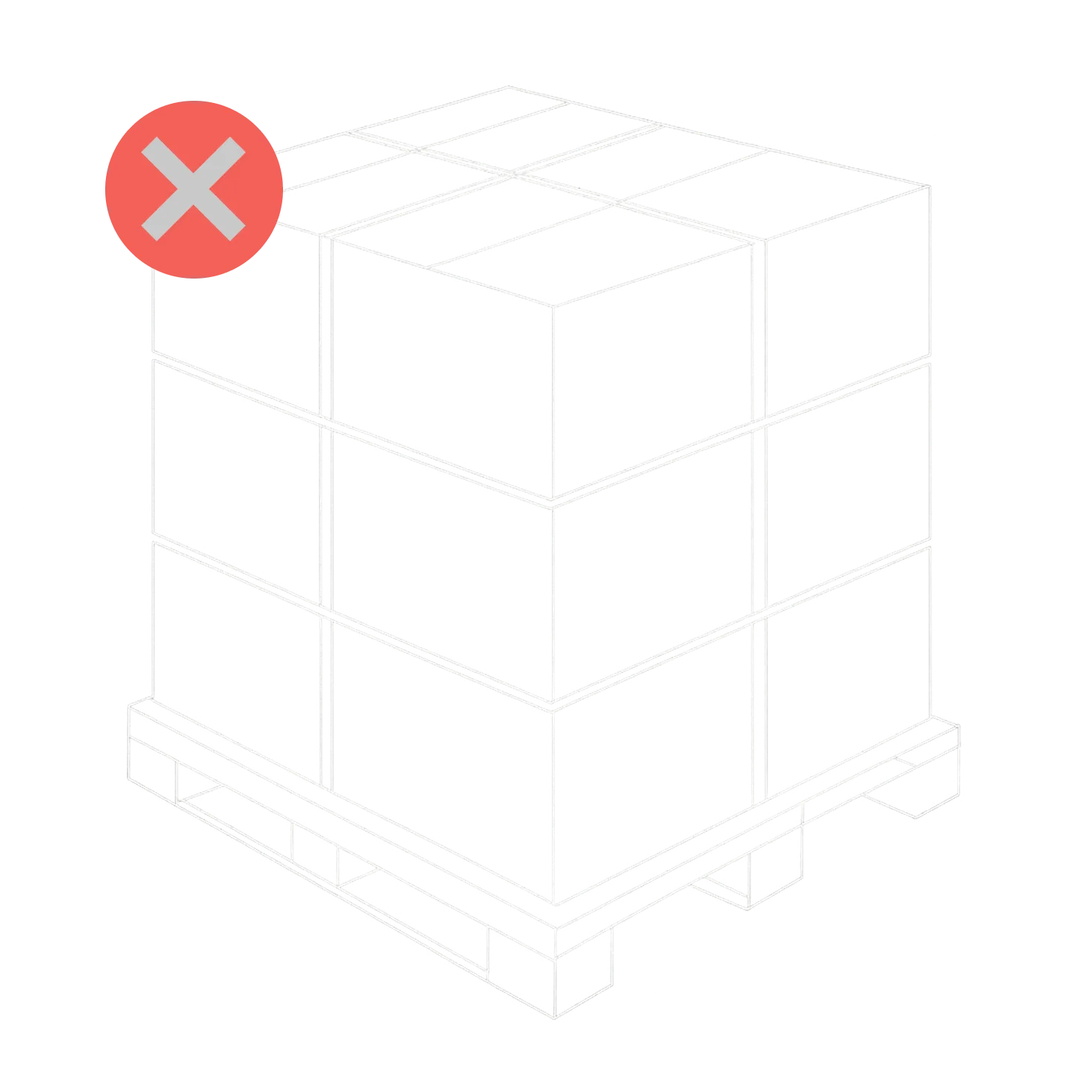

Pallet stability. A broken board, a misaligned slip sheet, a layer that isn't square, any of these compromise the structural integrity of the entire stack.
Product security. Missing units, down cans, inverted containers, and damaged flanges. Defects that make it onto the pallet create claims, rework, and product that ships with low quality.
Process efficiency. A compromised pallet mid-build is a hazard. The closer an intervention happens after an active sweep, the more downtime risk is involved.
Operator safety. An unstable pallet doesn't fail at the line — it fails on the floor or in transit, when it's moving and someone is nearby.
The palletizing sweep moves each new layer of cans onto the pallet in a continuous sequence. A stop before the sweep is a manageable event — the operator intervenes, the issue clears, the line recovers.
A stop after the sweep means the defective layer is already down. Getting back in sequence requires calling an engineer, resetting the cadence, sometimes an electrician. The line sits. Downstream operations wait.
The sweep is the line. Everything caught before it stays manageable. Everything past it becomes a recovery.
With AI vision at three sequential points on the palletizing line, PalletPerfect creates a layered gate system designed to catch defects before each new layer is swept onto the pallet. One system — flexible enough to run as a full solution or as targeted checks that fit your operation.
Every inspection point is a modular component of the PalletPerfect system. Deploy the full suite for complete pallet verification, or select the checkpoints that fit your operation. Detection thresholds and stop logic are configurable — LuxTronic works with each customer to define flag vs. line stop behavior across all inspection points.

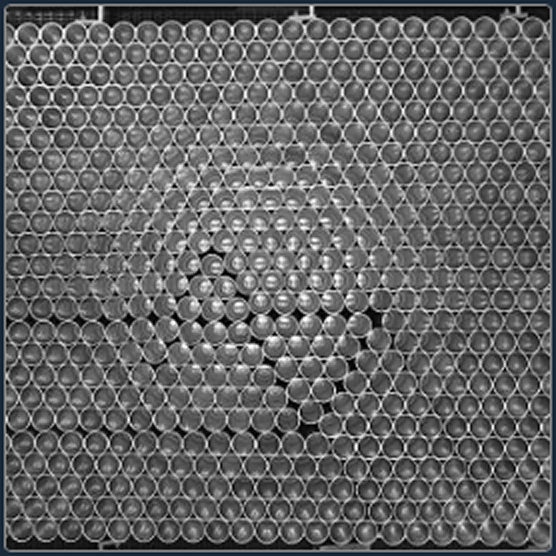

Inspects the mass pack with units oriented in the upright position before advancing to the divider section. Catches unit-level issues like can orientation and other anomalies.

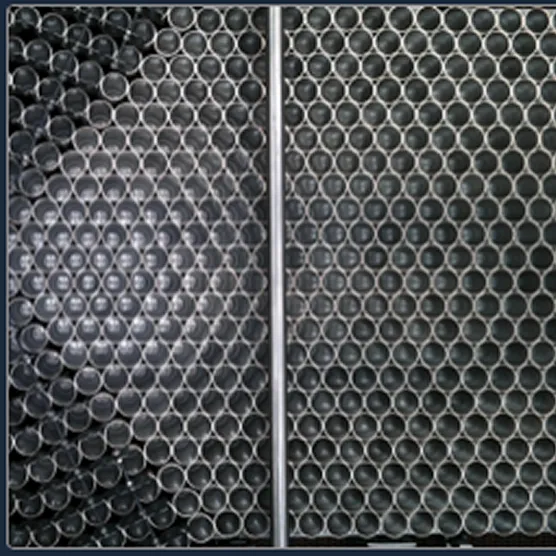

Inspects each row as the divider section arranges cans into their layer pattern. Catches structural and cosmetic defects that become impossible to detect once cans are stacked.

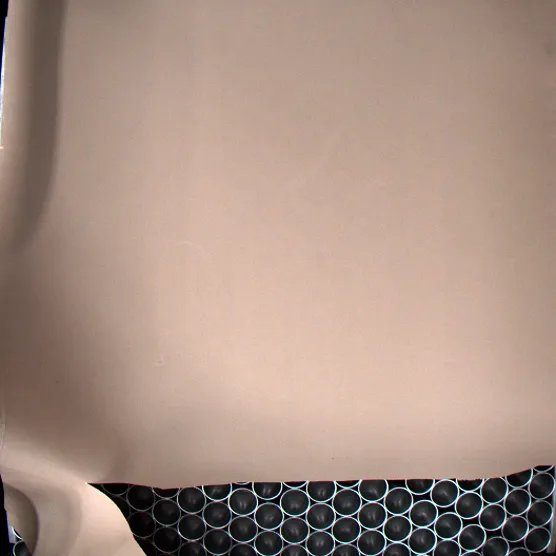

Top-down inspection as the pallet is stacked, including the base, each layer of units, and each slipsheet. Each layer verified with all units, aligned correctly, and full pallet integrity.

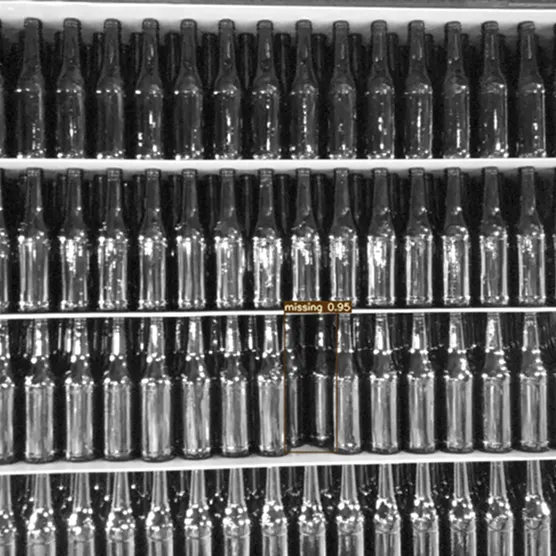

After glass bulk pallets are stacked, our side view camera captures the full height of the pallet. This allows us to verify each layer and make assessments of stability.
Top-down view over the strapper machine confirms all straps are present, correctly placed, and properly spaced before the pallet leaves the line.
.webp)

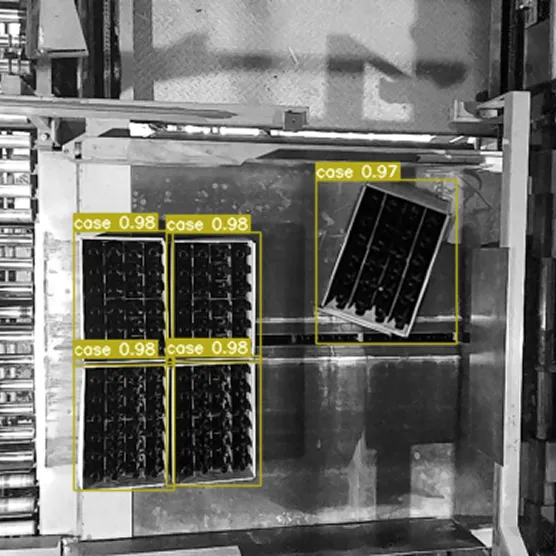

Top-down view watches each layer as cases slide onto the formation table and squaring arms push them into configuration. Verifies that every box is correctly oriented and the layer is square before it's placed onto the pallet.

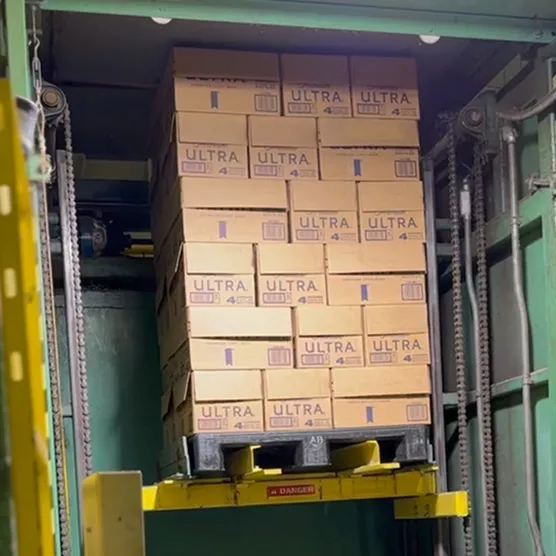

A lateral camera captures the full height of the completed pallet, checking structural integrity and overall stability before the load moves off the line.
PalletPerfect adapts to your operation — whether you need targeted checks or a full suite of pallet inspections. Start small or go all-in, and expand as your production grows.
With PalletPerfect, you secure the final stage of production. Reduce risk, protect shipments, and deliver verified quality — pallet after pallet, every time.
